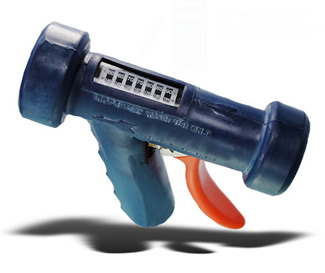

THERMOSMART SPRAY NOZZLES - T150 SERIES
Our Thermosmart spray nozzles were specifically designed to prevent water related burns by providing an accurate water temperature reading at the nozzle output. The Thermosmart spray nozzle provides a more accurate temperature reading than mixer mounted temperature gauges. It facilitates USDA washdown compliance and eliminates the need to verify temperature at the mixing station.
Series T150
The Thermosmart spray nozzles are manufactured with the same characteristics as our standard spray nozzles.
Our Thermosmart spray nozzles are available in:
- Brass (3 lbs.)
- Anodized Aluminum (1.69 lbs.)
- 300 Series Stainless Steel (2.78 lbs.
- Rating: 150 PSI / 200°F (93°C) NOT FOR USE WITH STEAM
| Inlet Pressure | Flow Rate |
| *(PSIG) | *(GPM) |
| 25 | 4.63 |
| 50 | 6.88 |
| 75 | 8.61 |
| 100 | 10.07 |
| 125 | 11.41 |
| 150 | 12.52 |
|
*Estimated |
| Thermosmart Spray Nozzles | |
| Part #: | Description: |
| T150B-DB | Thermosmart brass nozzle with dark blue cover. |
| T150B-W | Thermosmart brass nozzle with white cover. |
| T150A-LB | Thermosmart anodized aluminum nozzle with light blue cover. |
| T150A-W | Thermosmart anodized aluminum nozzle with white cover. |
| T150S-G | Thermosmart 300 series stainless steel nozzle with gray cover. |
| T150S-W | Thermosmart 300 series stainless steel nozzle with white cover. |
Contact for this product: Todd Yates | 1-201-327-7660 | Fax: 1-201-327-3242 | tyates@nciweb.com
