Washdown Station Spray Guns

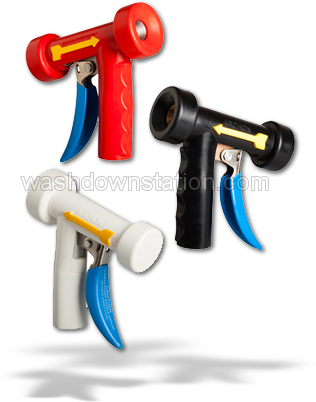

Spray Nozzle Model Number RT12

  • Heavy Duty durable construction
  • 1/2" Female NPT construction
  • Single piece stainless steel or nickel plated bronze body
  • Stainless steel valve stem
  • Nitrile valve seat and o-ring seals
  • Comfortable hand grip
  • Easy operation - designed to reduce fatigue
  • Replaceable rubber body cover provides temperature insulation and protects spray gun from extensive wear
  • Easy repair - all components are user serviceable
  • Repair kits readily available
Material
  • Body: C89833 Lead Free Nickel Plated Bronze
  • 0-Ring: Nitrile valve seat & o-rings seals
  • Spring: 304 SS
  • Handle: 304 SS I PVC Coated
  • Cartridge Unit: 304 SS
  • Cover: Nitrile (White cover FDA Compliant)
Performance Ratings
  • Minimum Supply Pressure: 25 psi (1.7 BAR)
  • Maximum Supply Pressure: 200 psi (13.8 BAR)
  • Maximum Operating Temperature: 200°F (93°C)
  • Flow Rate: 4 - 7.9 GPM

Spray Nozzle Model Number AKBZ

  • Hose Station Spray NozzlesAvailable with Blue Cover
  • Rugged Strong Brass housing
  • Front trigger
  • Spray pattern from broad spray to strong jet
  • Automatic shut-off upon lever release for extra safety
  • Cover and seals of EPDM rubber
  • Trigger handle and pusher in SS
  • All moving parts are renewable
  • 1/2" female pipe connection
  • Max. Temp. 200º F (95º C)
  • Max pressure 350 psi (24 bar)
  • Weight about 2 lbs.
  • Ergonomically designed handle reduces operator fatigue.
  • Clear red arrow showing the beam direction.
Also available:
  • Spray guns in chrome plated brass
  • Special spay guns for hot water in RED and large flow in Black
  • Special spray guns for (foam) lance mounting
Click for DetailsClick to See Spray Gun's Flow Rate for Model Number AKBZ

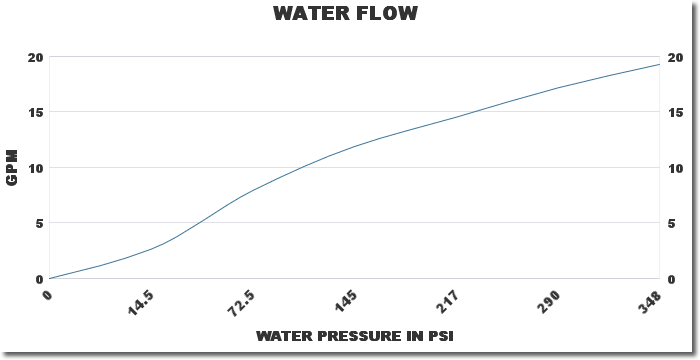

Water Flow Chart

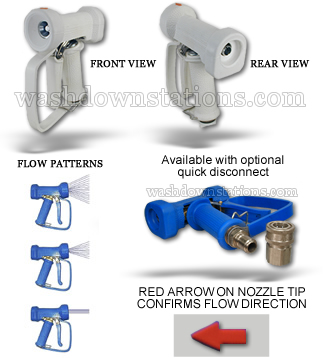

Spray Nozzle Model Number AKSS

  • Hose Station Spray NozzlesAvailable with White or Blue Cover
  • Rugged Stainless Steel housing
  • Front trigger
  • Spray pattern from broad spray to strong jet
  • Automatic shut-off upon lever release for extra safety
  • Cover and seals of EPDM rubber
  • Trigger handle and pusher in SS
  • All moving parts are renewable
  • 1/2" female pipe connection
  • Max. Temp. 200º F (95º C)
  • Max pressure 350 psi (24 bar)
  • Weight about 2 lbs.
  • Ergonomically designed handle reduces operator fatigue.
  • Clear red arrow showing the beam direction.
Also available:
  • Spray guns in chrome plated brass
  • Special spay guns for hot water in RED and large flow in Black
  • Special spray guns for (foam) lance mounting
Click for DetailsClick to See Flow Rate for Model Number AKSS
Water Flow Chart


Hot Water Lance Water Gun Model AK-R

Spray Gun Model Ak-RThe automatic shut-off lance features lightweight construction, shut-off upon lever release for safety and for reduction of  water usage, and full rotation of the angled discharge nozzle for manipulation in confined areas.
  • Rugged SS housing
  • Covers and seals of Viton® rubber
  • Max Temperature: 200° F (95° C)
  • Max Pressure: 350 psi (24 bar)
  • Water beam controllable from broad beam to strong jet
  • Long hand grip with collar
  • Teflon/Air Isolation
  • Weight: 2.6 lbs.
  • Rubber skirt for adapter heat protection
  • Reinforced safety trigger
  • Not for use with Steam
Click for DetailsClick to See Flow Rate for Model Number AK-R
Water Flow Chart


Hot Water Lance Water Gun Model AK-L40

Spray LanceThe automatic shut-off lance features lightweight construction, shut-off upon lever release for safety and for reduction of  water usage, and full rotation of the angled discharge nozzle for manipulation in confined areas.
  • Rugged SS housing
  • Covers and seals of Viton® rubber
  • Max Temperature: 200° F (95° C)
  • Max Pressure: 350 psi (24 bar)
  • Water beam controllable from broad beam to strong jet
  • Long hand grip with collar
  • Teflon/Air Isolation
  • Weight: 2.6 lbs.
  • Rubber skirt for adapter heat protection
  • Reinforced safety trigger
  • Not for use with Steam
Click for DetailsClick to See Flow Rate for Model Number AK-L40
Water Flow Chart


Rubber Coated Nozzles Part #: N2

Our Model N2 spray nozzles have rear mounted levers which reduce hand fatigue and offer smooth lever action.  The seat is an integral part of the the nozzle body.

Variable spray patterns, adjustable from fan spray to solid stream, is one of the many features offered.  Water conservation is assured upon release by the drip-free automatic shutoff feature.Spray Nozzles

  • Available in Brass (3 lbs), Anodized Aluminum (1.69 lbs) or 300 Series Stainless Steel (2.78 lbs)
  • Max Pressure:150 PSI (max test pressure of 500 PSI)
  • Max Temperature: 200° F (93° C)
  • Not for Use with Steam
  • Available in brass, aluminum or stainless steel
  • Not for use with Steam


Rubber Coated Nozzles with Built-in Temperature Indicator Part # T150

washdown spray nozzleSpecifically designed to prevent water related burns by providing immediate and accurate water temperature readings at the nozzle outlet.  The Thermo spray nozzle provides a more accurate temperature than mixer mounted temperature gauges.  It facilitates USDA washdown compliance and eliminates the need to verify temperature at the mixing station. Larger Image

  • Max Pressure:150 PSI (max test pressure of 500 PSI)
  • Max Temperature: 200° F (93° C)
  • Not for Use with Steam
  • Available in brass, aluminum or stainless steel
  • Not for use with Steam
