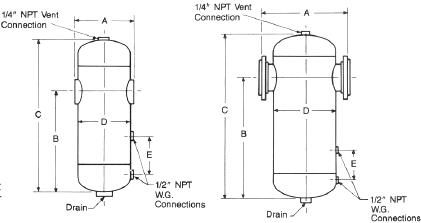

DIMENSIONS AND ESTIMATED WEIGHTS
|
|
Drains 3" And Larger Are
Flanged Slip-On � Separators Larger Than 24" Are
Available Upon Request
|
|
PIPE |
DIMENSIONS (INCHES) |
NPT |
WEIGHTS (LBS) |
|
SIZE |
THREADED |
FLANGED |
|
|
|
|
DRAIN |
|
150 LB. |
300 LB. |
|
(IN.) |
A |
A |
B |
C |
D |
E |
(IN.) |
THR'D. |
FLANGED |
FLANGED |
|
1/4,3/8 |
4-1/8 |
na |
7 |
7-3/4 |
3-1/2 |
na |
1/2 |
11 |
na |
na |
|
1 /2,3/4 |
5-1 /4 |
na |
9 |
9-7/8 |
4-1 /2 |
na |
3/4 |
18 |
na |
na |
|
1, 1-1/4 |
6-3/4 |
10-1/2 |
10-1/2 |
11-5/8 |
5-9/16 |
4-3/4 |
1 |
30 |
34 |
40 |
|
1-1/2, 2 |
7-5/8 |
11-1/2 |
12-1/2 |
14 |
6-5/8 |
4-3/4 |
1 |
50 |
56 |
61 |
|
2-1/2 |
10-5/8 |
16 |
15 |
22 |
8-5/8 |
5-3/4 |
1 |
na |
95 |
105 |
3 |
12-3/4 |
18 |
18 |
26 |
10-3/4 |
5-3/4 |
1-1/4 |
na |
148 |
148 |
|
4 |
na |
20 |
22 |
31 |
12-3/4 |
5-3/4 |
1-1/4 |
na |
195 |
220 |
|
5 |
na |
22 |
26 |
36 |
14 |
7-7/8 |
1-1/2 |
na |
225 |
285 |
|
6 |
na |
24 |
30 |
41 |
16 |
7-7/8 |
1-1/2 |
na |
350 |
380 |
|
8 |
na |
28 |
37 |
50 |
18 |
7-7/8 |
2 |
na |
480 |
615 |
|
10 |
na |
33 |
55 |
70 |
24 |
7-7/8 |
2 |
na |
770 |
1170 |
|
12 |
na |
38 |
58 |
75 |
28 |
7-7/8 |
2-1/2 |
na |
935 |
1505 |
|
14 |
na |
42 |
60 |
79 |
32 |
7-7/8 |
2-1/2 |
na |
1148 |
2200 |
|
18 |
na |
47 |
68 |
89 |
36 |
7-7/8 |
3 |
na |
1600 |
2770 |
|
18 |
na |
54 |
85 |
109 |
42 |
9-1/8 |
3 |
na |
2250 |
4370 |
|
20 |
na |
62 |
99 |
126 |
48 |
9-1/8 |
3 |
na |
2830 |
5600 |
|
22 |
na |
64 |
102 |
130 |
48 |
10-1/4 |
3 |
na |
3060 |
5950 |
|
24 |
na |
70 |
109 |
140 |
54 |
10-1/4 |
4 |
na |
4280 |
7850 |
|
