Washdown Station Accessories |

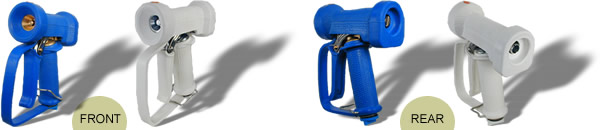

| Spray Nozzle Part Number A99 Available in both Bronze & Stainless Steel |
|
| Blue Model has Bronze body with Stainless Steel trim | White Model has Stainless Steel body & trim |
 Rear trigger design reduces the possibility of accidental discharge if dropped- Full stream to fog adjustment
- Automatic shut-off upon lever release for extra safety
- Cast bronze body with stainless steel, bronze and brass individual parts
- All moving parts are renewable
- Ergonomically designed handle reduces operator fatigue.
|
|
|
|
|
| |
| Rubber Coated Nozzles Part #: N2 |
 Utilized in high temperature industrial applications which do not exceed 180°F (82.2°C) - Finger-touch spray control
- Self-closing automatic shutoff
- Internal parts of bronze, brass, or stainless steel
|
|
|
| |
| Rubber Coated Nozzles with Built-in Temperature Indicator |
 Specifically designed to prevent water related burns by providing immediate and accurate water temperature readings at the nozzle outlet. The Thermo spray nozzle provides a more accurate temperature than mixer mounted temperature gauges. It facilitates USDA washdown compliance and eliminates the need to verify temperature at the mixing station.
- 150 PSI / 200° F (93° C) rated
- Not for Use with Steam
- Available in brass, aluminum or stainless steel
|
|
| |
| Spray Nozzle Part #: N2-A |
Stainless Steel Hose Nozzle Part #: N2-SS |
 Durable cover prevents front mounted levers from being engaged if the nozzle is dropped - Trigger locking feature to keep nozzle open at any spray pattern
- Stainless steel body, blue nylon cover
- Lightweight to reduce hand fatigue
- Maximum operating temperature 200°F (93°C)
- Maximum operating pressure 150 PSI
|
| |
|
|
 Utilized in high temperature industrial applications which do not exceed 180°F (82.2°C) - Finger-touch spray control
- Self-closing automatic shutoff
- Internal parts of stainless steel
|
| |
|
|
|
|
|
| |

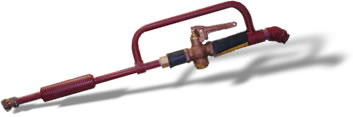

| Automatic Shut-Off Lance |
 The automatic shut-off lance features lightweight construction, shut-off upon lever release for safety and for reduction of water usage, and full rotation of the angled discharge nozzle for manipulation in confined areas.
|
|
|
| |
| Heavy Duty Hose - Part #: *HDH |
 All hoses are flexible, lightweight, economical, durable and safe. They are offered with your choice of end swivel adapter for nozzles and 3-piece adapter for mixing units. Hoses are available in lengths of 25', 50', 75, and 100' and can also be supplied in increments of 25' up to 500'!
- Colors: White, Black, Yellow and Red
- Materials: EPDM, Neoprene Nitrile and Hypalon covered
- 250 PSI standard with option for 400 PSI
Options:
- SW - Stainless Steel swivel protector
|
|
|
| |
| Heavy Duty Hose Rack Part # HDHR |
Hose Rack Part # HR2 |
 Heavy duty hose rack, stainless steel welded construction 1/8” bracket, 1/4” rack #4 finish.
|
|
|
 Durable stainless steel construction with integral mounting brackets |
|
|
|
|
|
| |
| Hose Reel Spring Driven Retractable - The Auto-Reel |
| Auto-Reel spring driven retractable hose reels have a history of long lasting performance. The larger chassis and frame accommodate longer lengths of hose. The dual axle support system reinforces the stability during operation, reduces vibration and strengthens the structural integrity of the reel. |
|
| |
| Max Pressure: To 5,000 PSI |
| Hose Length: Up To 100' |
| Dual Axle Support Points To The Center Shaft With Axle Support System |
| Swivel Seals: NITRILE |
| Weight: 69 lbs |
| |
| SPRING DRIVEN FEATURES: |
- Auto Rewind Easily Wraps, Stores & Protects Hose
- Heavy Gauge 1/4” Steel Base & Support Post
- Factory-Matched Cartridge-Style Spring Motor
- Solid Machined Brass Swivel
- 1” Solid Steel Axle With 1” Lubricated Precision Bearings
- Guide Arm Adjusts To Wall, Floor & Overhead Positions
- Multi-Position Lock Ratchet Secures Hose At Desired Length
- Non-Corrosive Stainless Steel Spring, Pawl & Zinc Plated Ratchet
|
| |
| ADDITIONAL FEATURES INCLUDE: |
- Professional Grade Heavy Duty Steel Construction
- Durable Proprietary “CPC” Powder Coat Process
- Rolled Edges & Ribbed Discs Provide Strength & Safety
- Leading 2-Year Manufacturer’s Limited Warranty
- Made In The U.S.A. Sold & Supported Worldwide
|
| |
| AVAILABLE OPTIONS: |
- MOUNTING BRACKET: #MR-1 - For overhead mounting, fits 3" to 8-1⁄2” flange on “I” or “H” beam. Powder coated crinkle black 3⁄16” bent steel. Weight: 13 lbs.
- SWIVEL BRACKET: #15721 - For horizontal surface mounting, ball bearing rotation, allows reel to swivel 345˚. Powder coated crinkle black heavy gauge steel. Weight: 6 lbs.
- SWING BRACKET: #15720 - For vertical surface mounting, allows reel to swing 180˚. Powder coated crinkle black 3⁄16” steel. Weight: 5 lbs.
- EZ-UP “I” OR “H” BEAM ADAPTER: #15724 - Must be ordered with PART #15723. Powder coated crinkle black, all steel construction. Weight: 5 lbs.
- EZ-UP BRACKET: #15723 - Reel easily slides in & out for easy overhead mounting. Use as an alternative to the #MR-1. Must be ordered with #15724 for “I” or “H” beam installations. Weight: 6.5 lbs.
|
|
|
|
| |
| Hose Reel Spring Driven Controlled Retraction - The Easy-Reel |
 Easy-Reel Safety Series spring driven retractable hose reels have a larger chassis and frame to accommodate longer lengths of hose. The added feature of the patented Easy-Coil controlled retraction controls the spring driven rewind to 80% slower than that of a conventional hose reel. No power source is required, pull out tension remains unaffected and the reel and its components last longer not having to withstand the slamming action at the end of the recoil cycle.
- Max Pressure: To 5,000 PSI
- Hose Length: Up To 100'
- Dual Axle Support Points To The Center Shaft With Axle Support System
- Swivel Seals: NITRILE
- Reduced Retraction By Up To 80%
- Weight: 69 lbs
|
| SPRING DRIVEN FEATURES: |
ADDITIONAL FEATURES INCLUDE: |
- Auto Rewind Easily Wraps, Stores & Protects Hose
- Heavy Gauge 1/4” Steel Base & Support Post
- Factory-Matched Cartridge-Style Spring Motor
- Solid Machined Brass Swivel
- 1” Solid Steel Axle With 1” Lubricated Precision Bearing
- Guide Arm Adjusts To Wall, Floor & Overhead Positions
- Multi-Position Lock Ratchet Secures Hose At Desired Length
- Non-Corrosive Stainless Steel Spring, Pawl & Zinc Plated Ratchet
|
- Professional Grade Heavy Duty Steel Construction
- Durable Proprietary “CPC” Powder Coat Process
- Rolled Edges & Ribbed Discs Provide Strength & Safety
- Leading 2-Year Manufacturer’s Limited Warranty
- Made In The U.S.A. Sold & Supported Worldwide
|
|
| |
| AVAILABLE OPTIONS: |
- MOUNTING BRACKET: #MR-1 - For overhead mounting, fits 3" to 8-1⁄2” flange on “I” or “H” beam. Powder coated crinkle black 3⁄16” bent steel. Weight: 13 lbs.
- SWIVEL BRACKET: #15721 - For horizontal surface mounting, ball bearing rotation, allows reel to swivel 345˚. Powder coated crinkle black heavy gauge steel. Weight: 6 lbs.
- SWING BRACKET: #15720 - For vertical surface mounting, allows reel to swing 180˚. Powder coated crinkle black 3⁄16” steel. Weight: 5 lbs.
- EZ-UP “I” OR “H” BEAM ADAPTER: #15724 - Must be ordered with PART #15723. Powder coated crinkle black, all steel construction. Weight: 5 lbs.
- EZ-UP BRACKET: #15723 - Reel easily slides in & out for easy overhead mounting. Use as an alternative to the #MR-1. Must be ordered with #15724 for “I” or “H” beam installations. Weight: 6.5 lbs
|
|
|
|
| |
| Hose Reel Hand Crank Series HC |
 Series HC hand crank hose reels are lightweight, compact, versatile reels that perform at high working pressures up to 4,000 PSI. Save time and effort while increasing the safety of your work environment. The sturdy “U” shaped frame and all steel construction make this one tough little reel.
- Pressure: To 5,000 PSI
- Length: Up To 550'
- Light Weight Compact Design
- Temperatures -20˚ F to 225˚ F
- Direct Hand Crank Action
- Up To 4,000 PSI Working Pressure
- Brass NPT Swivel Inlet Machined From Solid
- Brake Assembly Provides Adjustable Friction To Brake Or Lock The Drum
- Swivel Seals: NITRIL
|
| |
| ADDITIONAL FEATURES INCLUDE: |
AVAILABLE OPTIONS: |
- Professional Grade Heavy Duty Steel Construction
- Durable Proprietary “CPC” Powder Coat Process
- Rolled Edges & Ribbed Discs Provide Strength & Safety
- Leading 2-Year Manufacturer’s Limited Warranty
- Made In The U.S.A. Sold & Supported Worldwide
|
MOUNTING BRACKET: #SMK-202 - Pivoting base for wall mounting only. Includes rigid arm with 8-position locking pivot base. Weight: 8 lbs. |
|
|
|
|
| |
| 6 Ft Rubber Hose with self Closing Rose Spray P/N 5SCRS |
 6 ft. (1828mm) 3/8”rubber hose - Self closing rose spray
- Wall hook
- Weight: 3 lbs
|
|
| 6 Foot Black Hose, Plain End P/N 5P |
 6 ft. (1828mm) of 3/8”rubber hose - Plain end
- Wall hook
- Weight: 1 lb.
|
|
|
|
|
| |
| 6 Foot Rubber Hose with Spray Part Number 5RS |
 6 ft. (1828mm) of 3/8”rubber hose - 3” (76mm) rose spray
- Wall hook
- Weight: 2 lbs.
|
|
|
|
| |
| Standard Wall Mounted |
| Lag bolts and anchors provided for securing to an existing vertical surface. |
| |
| Optional Floor Pedestal |
| Floor mounted unit; Stainless steel cover, box and tube; Ideal where floor piping is accessible. All water and steam piping is concealed. |
| |
| Optional Recessed Wall Mixing Unit Enclosure |
Mixing unit is mounted within a stainless steel enclosure with removable cover panel. Valve bonnets, dial thermometer and the outlet project outside the enclosure. The hose and rack are mounted outside the enclosure. All water and steam piping is concealed. |
| |
| Optional Recessed Wall Full Unit Enclosure |
| Mixing unit and discharge hose are mounted within a stainless steel enclosure with hinged door. Water and steam piping, valves and dial thermometer are concealed |
