Tank Manways to 150 psig |
 The manways are available from 4” dia to 40” dia but special size manways are always considered. The standard material for our manways is 316L but other alloys are available. The manways are available with or without ASME certification.
- Wetted material: ASTM SA-240 316LSS Non-Wetted 304SS
- Stainless steel handles
- Silicone seal (blue)
- Hinge and handle neck height 6" (150 mm), neck thickness 4 mm
- Surface finish: unground shot blasted, from size 600 unground; pickled
|
| |
| Options: |
- Wetted materials: HC-276, HC-22, HC-2000, Alloy 600, AL6XN Alloy, etc..
- Intermediate sizes possible
- Variety of seal materials
- Surface finishes (shot blasted, pickled or ground to 500 grit)
- Neck length up to 2000 mm, neck thickness up to 20 mm
- with conical neck (up to 8 mm thickness)
- Various handles and screws: stainless steel handle, t-handle, collarnut
- Cover with swivel feature
- Cover with wedge for installation on the side of the vessel
- Locking pin
- Spring assist (torsion-, disc- or gas-springs)
- Sightglasses: weld pad type, screw-on type, clamp type limit switches
- Safety grill and safety
|
| |
|

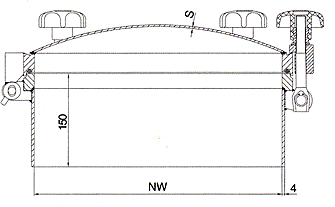

| Model Selection Chart: |
Model # |
Size (NW) |
Max. Press. (Bar) |
Max. Temp °C |
No. of screws M16 |
OAL |
S in 316L SS |
Weight in kg |
20162004 |
100 |
6 |
200 |
4 |
180 |
6 |
9 |
21562004 |
150 |
6 |
200 |
4 |
185 |
4 |
11 |
22062004 |
200 |
6 |
200 |
4 |
190 |
4 |
14 |
22542804 |
250 |
4 |
280 |
4 |
195 |
4 |
16 |
22582504 |
250 |
8 |
250 |
4 |
195 |
5 |
17 |
23042504 |
300 |
4 |
250 |
4 |
200 |
3 |
18 |
23062806 |
300 |
6 |
250 |
6 |
200 |
4 |
21 |
23082506 |
300 |
8 |
250 |
6 |
200 |
5 |
22 |
23542004 |
350 |
4 |
200 |
4 |
215 |
3 |
21 |
23562006 |
350 |
6 |
200 |
6 |
215 |
4 |
24 |
24042804 |
400 |
4 |
280 |
4 |
230 |
3 |
24 |
24060506 |
400 |
6 |
50 |
6 |
230 |
4 |
27 |
24062808 |
400 |
6 |
280 |
8 |
230 |
4 |
28 |
24082810 |
400 |
8 |
280 |
10 |
230 |
5 |
31 |
24542806 |
450 |
4 |
280 |
6 |
240 |
3 |
28 |
24562508 |
450 |
6 |
250 |
8 |
240 |
4 |
31 |
24582010 |
450 |
8 |
200 |
10 |
240 |
5 |
34 |
25032806 |
500 |
3 |
280 |
6 |
255 |
3 |
31 |
25042808 |
500 |
4 |
280 |
8 |
255 |
3 |
33 |
25062510 |
500 |
6 |
250 |
10 |
255 |
4 |
38 |
25081512 |
500 |
8 |
150 |
12 |
255 |
5 |
40 |
26022806 |
600 |
2 |
280 |
6 |
285 |
3 |
42 |
26040508 |
600 |
4 |
50 |
8 |
285 |
3 |
44 |
26042810 |
600 |
4 |
280 |
10 |
285 |
4 |
46 |
26061512 |
600 |
6 |
150 |
12 |
285 |
4 |
49 |
26081012 |
600 |
8 |
100 |
12 |
285 |
5 |
53 |
27022806 |
700 |
2 |
280 |
8 |
295 |
3 |
56 |
27042812 |
700 |
4 |
280 |
12 |
295 |
4 |
64 |
27061514 |
700 |
6 |
150 |
14 |
295 |
5 |
70 |
27081016 |
700 |
8 |
100 |
16 |
295 |
6 |
78 |
28020508 |
800 |
2 |
50 |
8 |
300 |
4 |
76 |
28022810 |
800 |
2 |
280 |
10 |
300 |
4 |
78 |
28042814 |
800 |
4 |
280 |
14 |
300 |
4 |
82 |
28061518 |
800 |
6 |
150 |
18 |
300 |
5 |
90 |
28080520 |
800 |
8 |
100 |
20 |
300 |
6 |
97 |
29022810 |
900 |
2 |
280 |
12 |
320 |
4 |
87 |
| 29042518 |
900 |
4 |
250 |
18 |
320- |
5- |
103- |
29061522 |
900 |
6 |
150 |
22 |
320 |
6 |
115 |
29080524 |
900 |
8 |
50 |
24 |
320 |
8 |
128 |
21022812 |
1000 |
2 |
280 |
12 |
340 |
5 |
110 |
21042020 |
1000 |
4 |
200 |
20 |
340 |
5 |
118 |
21060524 |
1000 |
6 |
50 |
24 |
340 |
6 |
125 |
|
|
|
| |
| |
