Fiber
Optic Illuminated Flag Type Indicator
|

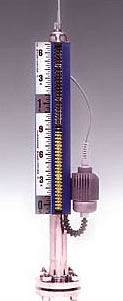

| The new Magnicator
II illuminated indicator assembly is a revolutionary,
patented leap forward in magnetic level indication. This
state of the art level indicator combines all of the
extraordinary features of the Magnicator
II's flag indicators with patented fiber optic
lighting technology to give you the best magnetic level
indication on the market -day or
night. The indicator housing is made of anodized
extruded aluminum and is designed to ensure reliable
readability. |
 |
| |
| Reliable Level Indication
Day or Night, Indoors or Out. |
| First Ever, Patented
Fiber Optic Illuminated Magnetic Level Indicator. |
| Optional Solar Power
Feature Allows for Installation in Any Location. |
| NEMA 4 4X, and 7 Rated
Enclosure. |
| Easily Wired for 115
VAC, 230 VAC, or Solar Powered. |
| Non Intrusive Side
Lighting Will Not Obscure View or Indicate False Levels. |
| Compact Aluminum Extrusion
Indicator Housing With Integral Light Chamber and Light
Source. |
| Light Source UL Listed
for Hazardous Location -- Class I, Div. 1 & 2, Groups
A, B, C, & D. |
| 4.85 Watt Lamp Has
a Standard Life of 15,000 Hours. |
| |
| |
|
| Specifications |
| Power Supply: |
115 or 230
VAC, 50-60 Hz | Solar Power Optional |
| Output: |
5 VAC @ 1
Amp115 VAC = .04 Amp
230 VAC = .02 Amp |
| Consumption: |
| Est. Lamp Life: |
15,000 Hours |
| Enclosure: |
Anodized Aluminum
NEMA 4, 4X, 7
UL Approved for use in
NEC Class 1, Div. 1
Groups A, B, C, & D. |
| Lamp: |
4.85 Watt, Gas Filled |
| Electrical Connection: |
3/4 or 1" NPT Female |
