Jerguson NightStar LED Illuminators
Here’s a Really Bright Idea that will provide 24 hour visibility

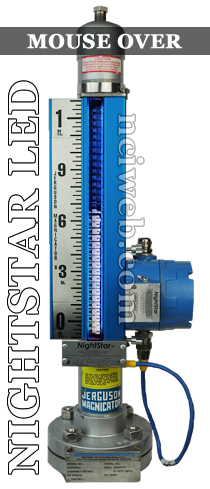

NightStar Indicators for the Magnicator® II make a level gage continuously visible... night or day with bright LED illumination.
No more flashlight searches; no more spending more time than needed in process areas.
NightStar Illuminators provide an array of bright LEDs to shine on standard mechanical flag indicators. No light or low-light, the operator can easily and reliably verify level.
- High contrast indication
- Not angle dependent – viewer can see clearly from many positions
- Reduced operator exposure in process areas can increase safety
- LEDs have a nominal life of 10 years
- Approved for use in Class I, Div. 1 classified locations
- Easy Upgrade for any Magnetic Level Gage **
- FM & CSA Approval to: Class I, Div. 1, Grps. B, C, & D | Class II, Div. 2, Grps. E, F, & G
- Power Supply: 120 or 240 VAC
- Power Consumption: < 750 mA @ 120 VAC | < 375 mA @ 240 VAC
- Max. Remote Distance from Power Supply to Light Strip = ~80 feet (24.3m)
- Electrical Connection: 3/4" FNPT
- Ambient Temperature: -40ºF (-40ºC) to 170ºF (77ºC)
- Process Temperature: Up to 450ºF (232ºC) 450ºF (232ºC) to 600ºF (316ºC) with air purge kit on indicator
- Protection Methods: Explosion-proof power supply | Intrinsically-safe lighting circuit | NEMA 4X design
** NightStar Indicators can be field-upgraded on any Jerguson magnetic gage utilizing the existing float (or other manufacturer’s gage by replacing both the float and indicator).
