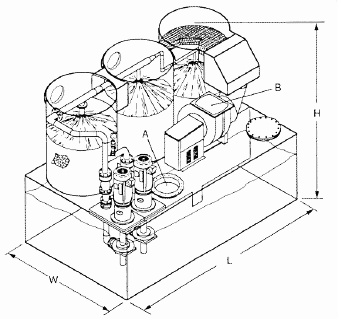

Emergency Scrubber System Type ESW Dimensions
MODEL

L

W

H

A (Inlet)

B (Outlet)

WT. LBS*

HP Pump Fan
3000 VP

14’ 9"

8’

11’

18"

16" x 20"

5300

10 5

5000 VP

18’

10’

11’ 6"

24"

16" x 20"

7500

15 7.5



* Weight is based on an empty two-pump ESW system.

Model numbers indicate the scrubber air exhaust air exhaust rate in cfm.
VP indicates a vertical sealless pump.
