Washdown Stations |

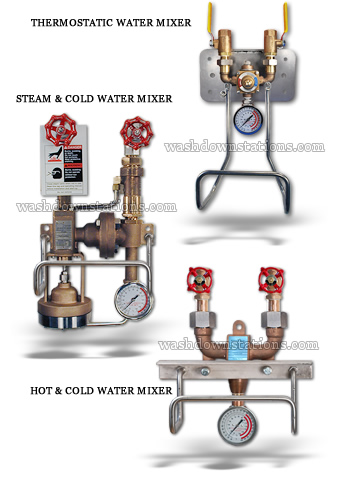

Washdown Stations are widely used in dairy, pharmaceutical, food processing, chemical and industrial plants. Wherever efficient, economical and low-maintenance means of hot-water clean-up is needed, Washdown Stations are used. The most widely used cleaning method, the mop and bucket, risks cross-contamination. Hose reels and washdown stations assist in fighting bacteria and grime. However, without the right chemical mix and adequate water pressure, they can't get the entire job done. Washdown Systems are an excellent sanitation solution for commercial and institutional facilities. Types of Washdown Stations Available:
|
 |
|
| SAFETY COMES FIRST! |
 When handling live steam, SAFETY COMES FIRST! To reduce the potential for steam discharge, all Our Our Steam/Water Washdown Stations employ a unique valve and diaphragm technology. Steam is automatically blocked from discharging from the mixing station using a specially engineered diaphragm device. The diaphragm uses the steam supply pressure to positively close the steam inlet valve to the mixing chamber. The mixing station does not rely on potentially unreliable components such as temperature sensors or electrical devices to keep the steam valve closed. The diaphragm device will permit the steam inlet valve to open only after sufficient cold water flow is established by squeezing the spray nozzle or lance. If at any time the cold water is restricted, the steam is automatically shut off. NO WATER-NO STEAM! |
| Minimal Maintenance Required |
| Carbonate build-up at the steam inlet valve, a problem plaguing competitive units, is minimized. A check valve is optimally positioned within the mixing station between the steam inlet valve and the cold water chamber housing the specially designed steam-water venturi mixer. The steam valve seat is isolated from the cold water supply, preventing deposit of carbonates at the steam valve thus reducing the potential for steam inlet valve seizure. No special tool kits are required for the Washdown Station to operate at maximum efficiency and safety. |
| |
| Optional Accessories: |
 Recessed and Pedestal Mounted Units- Automatic Water-Saver Spray Nozzle Part # A99
- Rubber Coated Bronze Nozzle Part #: N2
- Spray Nozzel Part #: N2-A
- Stainless Steel Hose Nozzle Part #: N2-SS
- Hose Assemblies
- Hose Nozzle Part # N3
- Heavy Duty Hose - Part #: 5HDH
- 25 ft. long 3/4" diameter hose
- 50 ft. long 3/4" diameter hose
- Hose Rack Part # HR2
- Heavy Duty Hose Rack Part # HDHR
- Strainers
- Spray Lance
- Wall Cabinets for complete enclosure
|
| Mounting Configurations: |
 Standard Wall Mounted - Lag bolts and anchors provided for securing to an existing vertical surface. - Optional Floor Pedestal - Floor mounted unit; Stainless steel cover, box and tube; Ideal where floor piping is accessible. All water and steam piping is concealed.
- Optional Recessed Wall Mixing Unit Enclosure - Mixing unit is mounted within a stainless steel enclosure with removable cover panel. Valve bonnets, dial thermometer and the outlet project outside the enclosure. The hose and rack are mounted outside the enclosure. All water and steam piping is concealed.
- Optional Recessed Wall Full Unit Enclosure - Mixing unit and discharge hose are mounted within a stainless steel enclosure with hinged door. Water and steam piping, valves and dial thermometer are concealed.
|
| |
