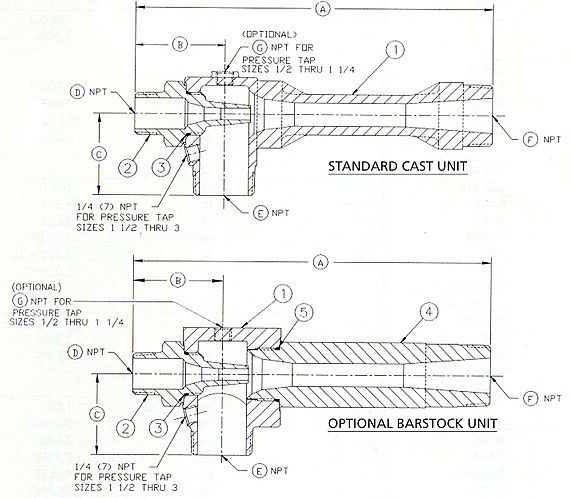

Dimensions for Models ML, MLE, SG & HG
|
|
|
 |
| Assembly Dimensions: |
|
SIZE
|
A
|
B
|
C
|
D
|
E
|
F
|
G
|
| |
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
inches
|
mm
|
|
1/2
|
4.500
|
(114)
|
1.625
|
(41)
|
1.250
|
(32)
|
3/8
|
(10)
|
1/2
|
(15)
|
1/2
|
(15)
|
1/8
|
(3)
|
|
3/4
|
5.875
|
(149)
|
2.000
|
(51)
|
1.500
|
(38)
|
1/2
|
(15)
|
3/4
|
(20)
|
3/4
|
(20)
|
1/4
|
(7)
|
|
1
|
7.125
|
(181)
|
2.250
|
(57)
|
1.750
|
(44)
|
3/4
|
(20)
|
1
|
(25)
|
1
|
(25)
|
1/4
|
(7)
|
|
1-1/4
|
9.000
|
(229)
|
2.500
|
(64)
|
2.250
|
(57)
|
1
|
(25)
|
1-1/4
|
(32)
|
1-1/4
|
(32)
|
1/4
|
(7)
|
|
1 -1/2
|
11.000
|
(279)
|
2.750
|
(70)
|
2.500
|
(64)
|
1
|
(25)
|
1-1/2
|
(40)
|
1-1/2
|
(40)
|
-
|
|
|
2
|
14.375
|
(365)
|
3.125
|
(79)
|
3.000
|
(76)
|
1-1/4
|
(32)
|
2
|
(50)
|
2
|
(50)
|
-
|
|
|
2-1/2
|
18.125
|
(460)
|
3.500
|
(89)
|
4.125
|
(105)
|
1-1/2
|
(40)
|
2-1/2
|
(65)
|
2-1/2
|
(65)
|
-
|
|
|
3
|
23/875
|
(606)
|
4.000
|
(102)
|
5.000
|
(127)
|
2
|
(50)
|
3
|
(80)
|
3
|
(80)
|
-
|
|
|
|
|
|
|
| |
| Parts List: |
| Item Number |
Description |
| 1 |
Body |
| 2 |
Nozzle |
| 3 |
O-Ring, Nozzle |
| 4 |
Discharge |
| 5 |
O-Ring, Discharge |
|
|
|
|
|
| |
