U2 Series Straigh-Through Silencer |
 The U2 Series is an economical straightthough silencer for applications requiring lower-degree noise attenuation. It is fundamentally similar to the U5 Series, but has lesser attenuation due to its relatively low length to diameter ratio. Mild steel construction, primer-coated exterior. |
| Common Applications: |
- intermediate size rotary positive blower inlet
- centrifugal blower inlet or discharge
- intermediate size dry vacuum pump discharge
- gas turbine inlet
- high-speed centrifugal compressor inlet
- high frequency noise sources
|
| |

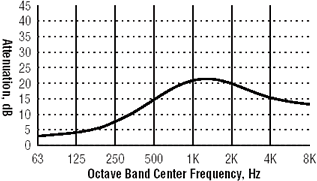

| Typical Attenuation Curve: |
 |
| |

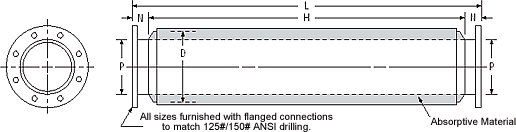

| Dimensional Information: |
 |
| Model |
Part |
| U2-5 |
10-105-AA |
| U2-6 |
10-106-AA |
| U2-8 |
10-108-AA |
| U2-10 |
10-110-AA |
| U2-12 |
10-112-AA |
| U2-14 |
10-114-AA |
| U2-16 |
10-116-AA |
| U2-18 |
10-118-AA |
| U2-20 |
10-120-AA |
| U2-22 |
10-122-AA |
| U2-24 |
10-124-AA |
| U2-30 |
10-126-AA |
|
| P |
D |
L |
N |
H |
Weight |
| 5 |
10 |
36 |
3 |
30 |
45 |
| 6 |
12 |
40 |
3 |
34 |
70 |
| 8 |
14 |
53 |
3-1/2 |
46 |
105 |
| 10 |
16 |
65 |
3-1/2 |
58 |
160 |
| 12 |
18 |
77 |
3-1/2 |
70 |
220 |
| 14 |
20 |
89 |
3-1/2 |
82 |
340 |
| 16 |
22 |
101 |
3-1/2 |
94 |
440 |
| 18 |
24 |
113 |
3-1/2 |
106 |
530 |
| 20 |
26 |
128 |
4-1/2 |
119 |
700 |
| 22 |
28 |
140 |
4-1/2 |
131 |
820 |
| 24 |
30 |
152 |
4-1/2 |
143 |
1,070 |
| 30 |
36 |
189 |
4-1/2 |
180 |
1,940 |
|
|
| |
